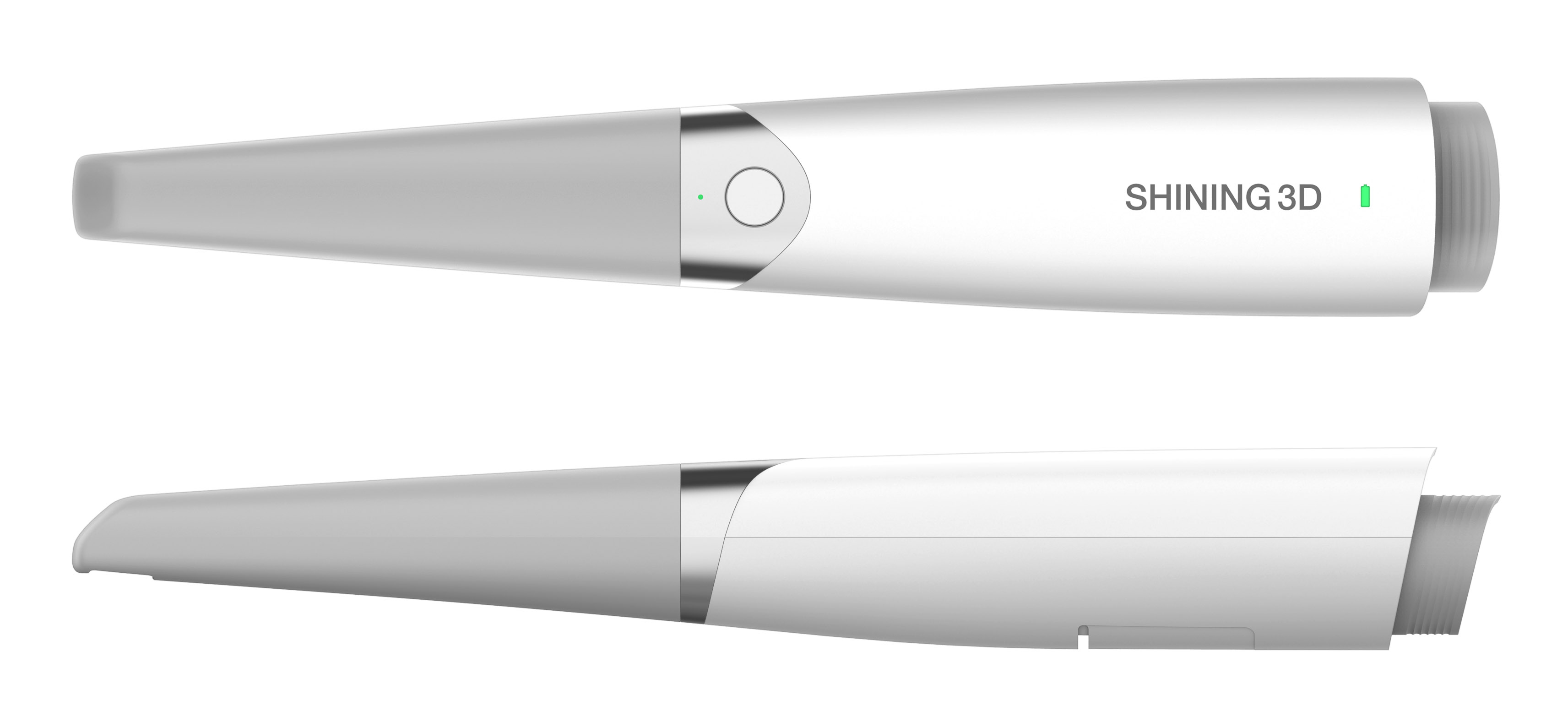

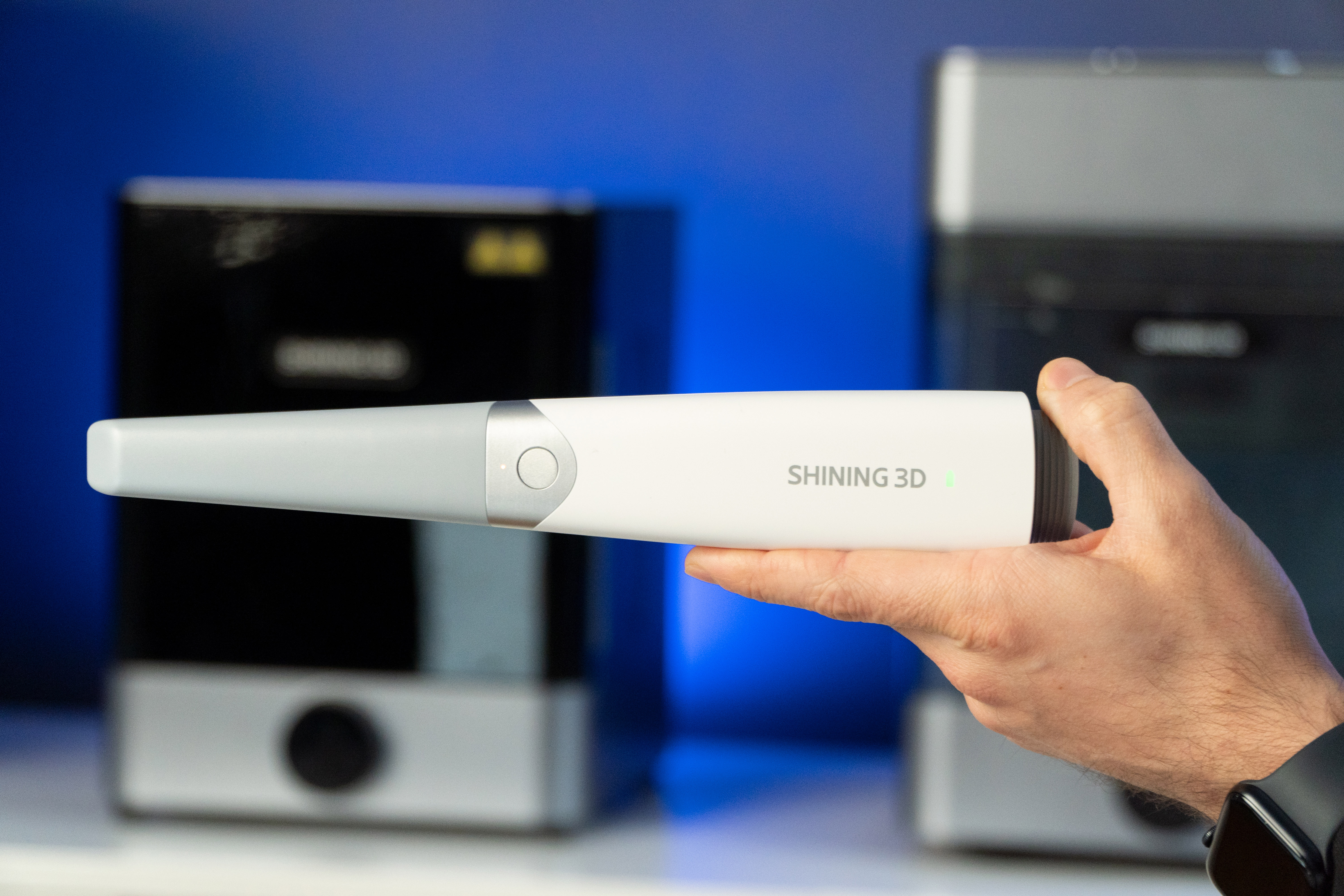

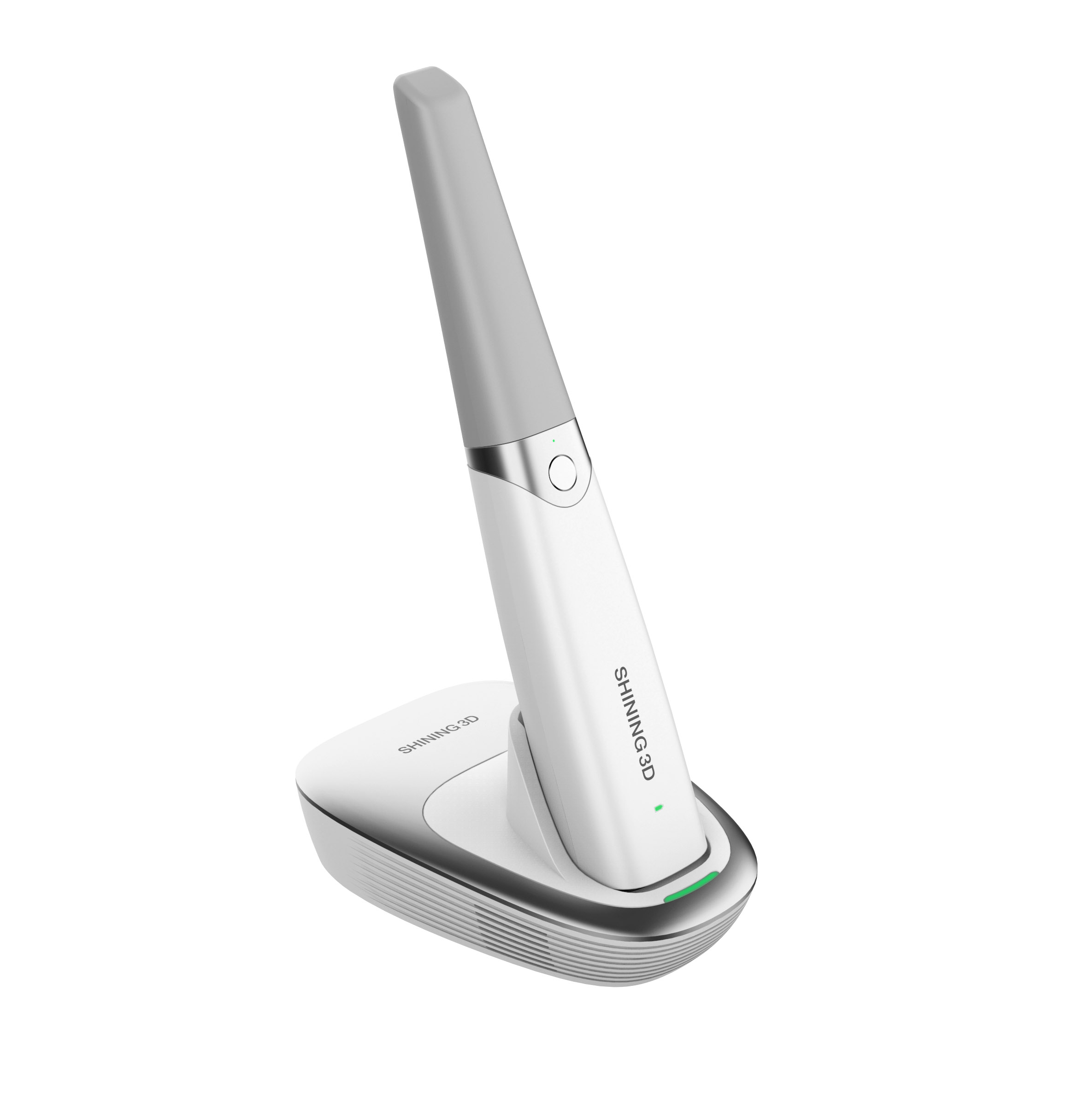

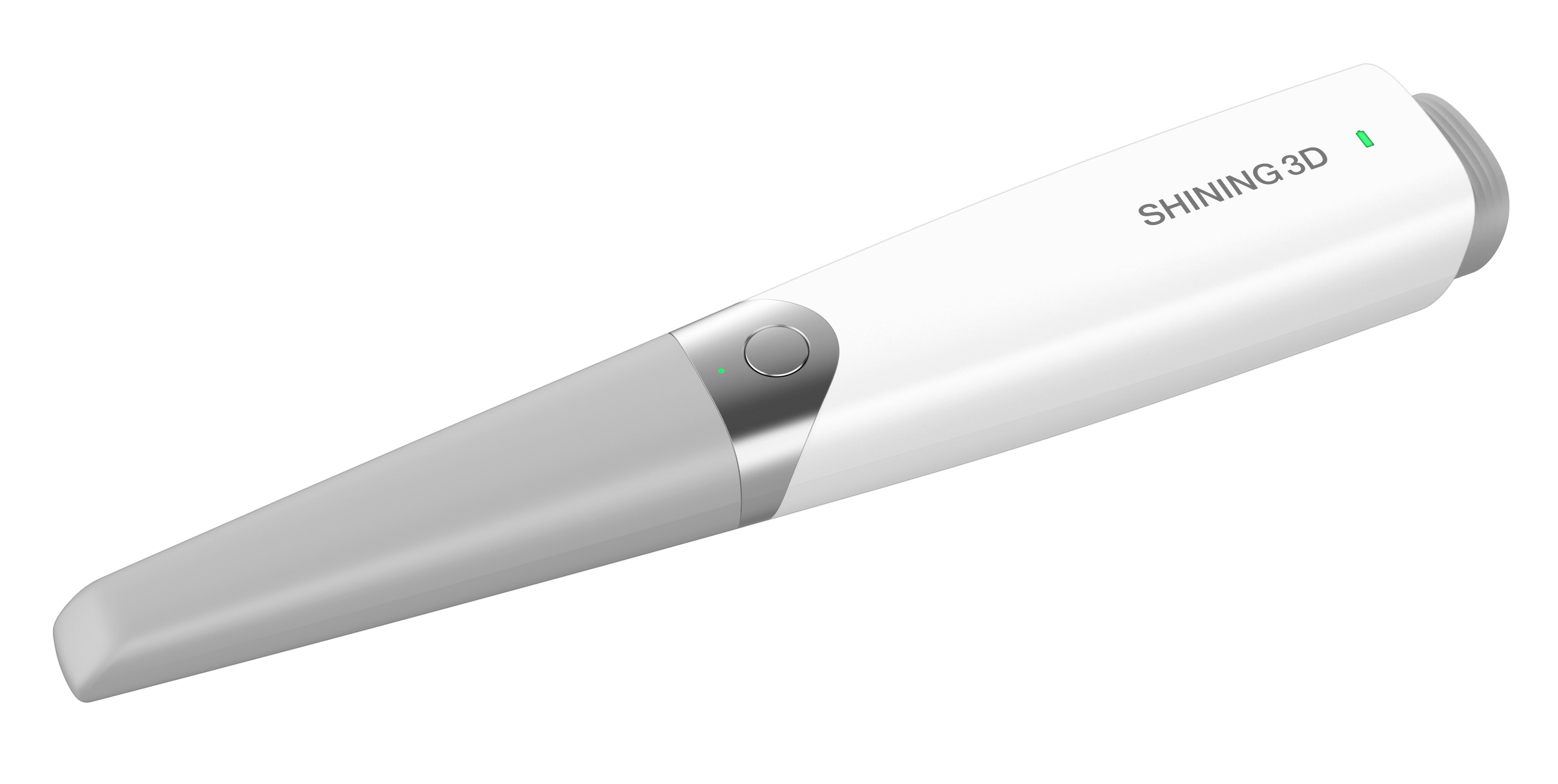

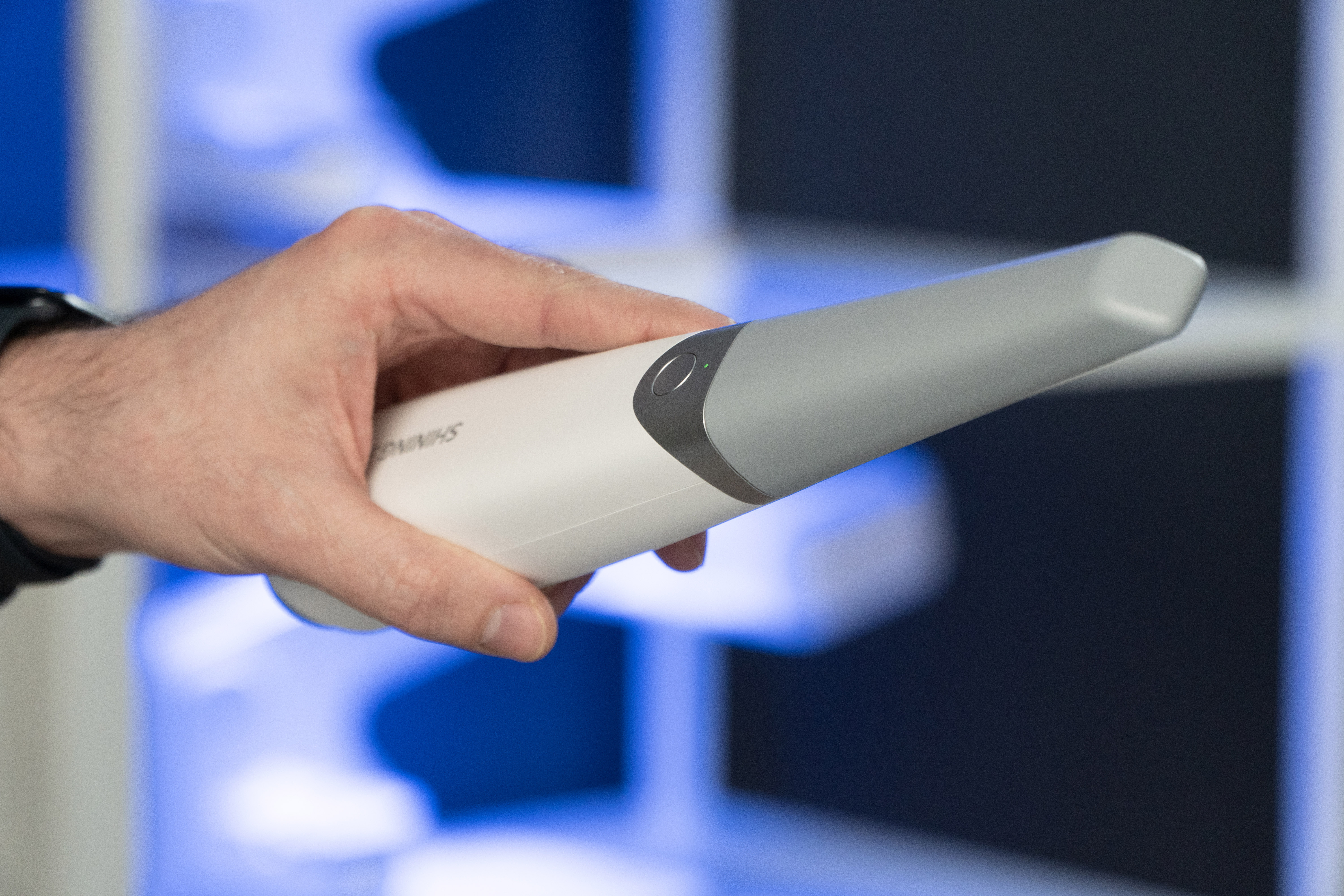

Fast, Accurate and Exceptional Scan Performance for Chairside Experience. The constant optimization and innovation of Shining 3D’s hardware and software system, led to the release of its latest and finest intraoral scanner, Aoralscan 3. The Aoralscan 3 Wireless Intraoral Scanner provides a comfortable experience for the doctor and patient without the restraints from a wired setup.
Go Wireless
Provides a more comfortable experience for dentist and patient without restraints from a wired setup.
Fast and Stable
Built-in Wi-Fi 6 technology enables a seamless scan experience with fast and stable data transmission.
Long-lasting Battery Life
Up to 2 hours of continuous scanning for each charge, with 3 batteries included. Enjoy smooth scanning and a seamless workflow with a long battery life.
Next-level Software Functions
Faster data post-processing speed. Self-developed, clinic-friendly functions, including Orthodontic Simulation, Model Creator, Temp Design, Indirect Bonding Tray Design, Oral Health Report and Data Track.
LONG-LASTING Battery Life
10 days under sleep mode.
One case scanning time: 2 min*
AI SCAN - Speed up the scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.
MOTION SENSING - Less Contact, Much Safer
Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.
METAL SCAN
Enhanced scanning algorithm for a better metal tooth scanning experience and data rendering.
REFINED SCAN
Refines the restoration area to help obtain clear margin data and more detailed surface data.
Clinical Toolkit | ||
The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. It facilitates effective communication with dental labs to deliver quality dental work with high efficiency. |
||
Undercut Check |
Bite Check |
Margin Line Auto Extraction |
Tooth Marking |
Coordinate Adjustment |
Direct Export into exocad |
Cloud Platform | ||
SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs. | ||
Online Data Preview |
Order Statistics Analysis |
Order Tracking System |
ORTHO SIMULATION - Preview To Be Decisive
The whole treatment process can be simulated and patient will be able to see the post-treatment effect in advance, extremely effective for consultation process.
TEMP DESIGN
Temporary crowns can be designed and printed in the office, reducing the patient’s wait time.
DATA TRACK
Helps patients understand oral changes and improve the efficiency of dentist-patient communication by tracking patient data.
MODEL CREATOR
AccuDesign Model Creator is one of the most intuitive model creator on the market, with a 10-minute learning curve, anyone can easily design a perfect dental or orthodontic model.
Application | ||
The Aoralscan 3 wireless intraoral scanner can be applied for clinical indications range spans general restorations, 3d teeth scan, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience. | ||
Inlay Onlay |
All-on-6 Implant |
6-Unit Bridge |
Veneer |
Pediatric Dental Care |
Orthodontics |
TECHNICAL SPECIFICATIONS | |
Scan Field | Standard scanner tip: 16 mm × 12 mm × 22 mm Mini scanner tip: 12 mm × 9 mm × 22 mm |
Scan Depth | 2 mm to 20 mm from exit surface of tip |
Scan Tip Sterilization | Autoclave 150 times 121°C 102.9kPa 30 mins 134°C 205.8kPa 4 mins |
Scan Tip Heating | 40s instant heating (Anti-fogging) |
Scan Principle | Non-contact scanner with structured light |
Wireless Technology | Wi-Fi 6(802.11a/n/ac/ax) |
Effective Wireless Range | Same room, up to 5 m |
Battery Life | 2 hours of continuous scanning. 10 days under sleep mode |
Dimension (L × W × H) | 270 mm × 50 mm × 40 mm (includes battery, tip) |
Weight | 330 ± 20 g (includes battery, tip) |
Output | STL, OBJ, PLY |
Connector | USNB 3.0 |
Power Input | 12V DC/3A |
space
space
Recommended PC Configuration | |
CPU | Intel® Core™ i7-11700H Intel® Core™ i7-10700F Minimum:Intel® Core™ i7-8700F Recommend:Intel® Core™ i7-11800H |
RAM |
Minimum: 16 GB Recommended: 32 GB |
Hard Disk Space | 256 GB or more |
Carte graphique (GPU) | NVIDIA RTX 2060 6GB DDR3 or higher |
Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems |
Screen Resolution | 1920×1080, 60 Hz or higher |
I/O Ports | More than 2 Type-A USB 3.0 (or higher) ports |
